EOS Mythos series 6.0 kW
Точные сроки и условия подтвердит менеджер перед оплатой.
Отправить конфигурацию товара менеджеру и обсудить детали
Описание товара

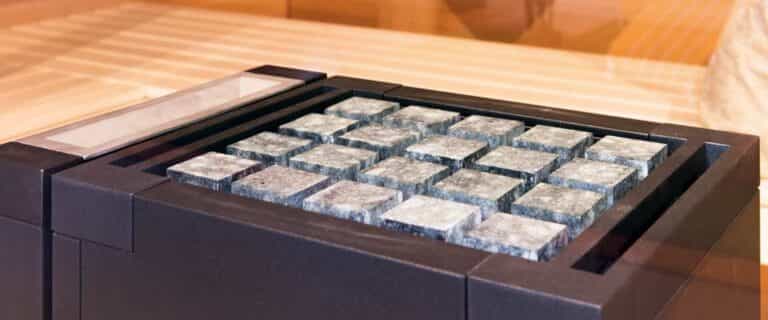

EOS Mythos S35
Floor-standing sauna heater with a stone volume of 35 kg – available in 7.5 kW and 9.0 kW versions for sauna cabins up to approx. 14 m³.
Available in anthracite pearl effect design, black, and white finishes. The S35 anthracite features a pearl effect design with optional Cubius stones, while the black and white models come with inclusive Cubius stones.
EOS Mythos S35 Vapor
External vaporizer for flexible climate forms. Available in anthracite pearl effect design with optional Cubius stones and vaporizer (left or left+right), as well as matt black and white finishes with vaporizer (left). Optional heater guard rail is available.
EOS Mythos S45
Floor-standing sauna heater with a stone volume of 45 kg – available in 12.0 kW and 15.0 kW versions for sauna cabins up to approx. 25 m³.
Available in anthracite pearl effect design with optional Cubius stones, black, white, «Water Reflection», and dark bronze finishes with inclusive Cubius stones.
EOS Mythos S45 Vapor
External vaporizer for flexible climate forms. Available in anthracite pearl effect design with optional Cubius stones and vaporizer (right or left+right), matt white finish with vaporizer (right), matt black finish with vaporizer (left or left+right), and «Water Reflection» with vaporizer (left). Optional heater guard rail is available for certain configurations.
Accessories
Optional accessories: Cubius sauna stones, Cubius Loop sauna stones, vaporizer, EOSafe L safety system, and a wooden heater guard with mounting brackets. Compatible with EOS Scent Trophy W (special heights), EOS Scent Trophy S, and EOSafe L.
Характеристики
- Мощность
- 6,0 kW
- Electrical connection
- 400 V 3N ~ 50/60 Hz
- Dimensions H/W/D, in cm
- 84 / 42 / 37 (EOS Mythos S35) 84 / 50 / 37 (EOS Mythos S45)
- For sauna cabin size (7,5 / 9,0 / 12,0 / 15,0 kW)
- 8 - 12 m³ / 10 - 14 m³ / 14 - 18 m³ / 18 - 25 m³
- Min. size air inlet and outlet (7,5 / 9,0 / 12,0 / 15,0 kW)
- 35 x 5 cm / 35 x 6 cm / 35 x 7 cm / 35 x 9 cm
- Fuse protection control unit
- 3 x 16 A
- Weight withouth rocks
- 34 kg (EOS Mythos S35) 40 kg (EOS Mythos S45)
- Stone filling
- 35 kg (EOS Mythos S35) 45 kg (EOS Mythos S45)
- Power extension required (7,5 - 9 kW / 12 - 15 kW)
- no / PEB 10
- Electrical connection
- 230 V 1N ~ 50 Hz
- Vaporizer power
- 2,0 kW / 3,0 kW
- Vaporizer dimensions H/W/D, in cm
- 84 / 8 / 37
- Vaporizer water tank volume
- 10 l
- Connection control unit - vaprozer
- 5 x 1,5 mm²
- Power
- Item no.
- 7,5 kW
- 945488
- 9,0 kW
- 945489
- 7,5 kW
- 946066
- 9,0 kW
- 946067
- 7,5 kW
- 945988
- 9,0 kW
- 945989
- 7,5 kW
- 949591
- 9,0 kW
- 949592
- 7,5 kW
- 949408
- 9,0 kW
- 949409
- Power
- Item no.
- 12,0 kW
- 945490
- 15,0 kW
- 945491
- 12,0 kW
- 946068
- 15,0 kW
- 946069
- 12,0 kW
- 945991
- 15,0 kW
- 945992
- 12,0 kW
- 949589
- 15,0 kW
- 949590
- 12,0 kW
- 949406
- 15,0 kW
- 949407
- Power
- Item no.
- 3,0 kW
- 945572
- 3,0 kW
- 945493
- 6,0 kW
- 946250
- 2,0 kW
- 945571
- 2,0 kW
- 945492
- 4,0 kW
- 946253
- 3,0 kW
- 945902
- 3,0 kW
- 945906
- 6,0 kW
- 946262
- 2,0 kW
- 945901
- 2,0 kW
- 945905
- 4,0 kW
- 946265
- 3,0 kW
- 945900
- 3,0 kW
- 945904
- 6,0 kW
- 946256
- 2,0 kW
- 945899
- 2,0 kW
- 945903
- 4,0 kW
- 946259
- 3,0 kW
- 949595
- 3,0 kW
- 949596
- 6,0 kW
- 949602
- 2,0 kW
- 949593
- 2,0 kW
- 949594
- 4,0 kW
- 949599
- 3,0 kW
- 949404
- 3,0 kW
- 949405
- 6,0 kW
- 949415
- 2,0 kW
- 949402
- 2,0 kW
- 949403
- 4,0 kW
- 949412
