EOS Herkules XL S120 HD series 30.0 kW
Точные сроки и условия подтвердит менеджер перед оплатой.
Отправить конфигурацию товара менеджеру и обсудить детали
Описание товара

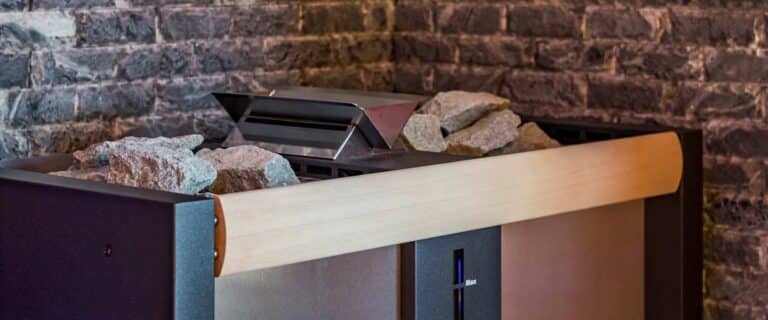

EOS Herkules XL S120 HD – Finnish (Dry) Sauna Model
EOS Herkules XL S120 HD is a floor‑standing heater designed for Finnish (dry) saunas. It features a rock store that accommodates up to 120 kg of stones and is available in a black finish.
EOS Herkules XL S120 Vapor HD – Integrated Vaporizer Model
EOS Herkules XL S120 Vapor HD offers a floor‑standing design with an integrated vaporizer, enabling flexible climate control in the sauna. Its rock store also holds up to 120 kg of stones, and the unit is finished in black.
Herkules Fragrance Vaporizer – and the unit is finished in black.
Herkules Fragrance Vaporizer – Installation and Operation
The Herkules Fragrance Vaporizer is a dish arrangement with an integrated water supply, intended for retrofitting onto the EOS Herkules XL S120 sauna heater. It is mounted in the middle of the left and right side walls. Fill the vaporizer with water and, if desired, any doses of sauna infusion preparations or essential oils. Do not place flammable substances or materials in the dish. The system is designed to work with an upstream automatic vaporizer dosing unit that controls water filling quantity, the dosing cycle, and the amount of aromas dispensed. Item no.: 946826.
Характеристики
- Мощность
- 30,0 kW black
- Electrical connection
- 400 V 3N ~ 50/60 Hz
- Fuse protection control unit(18 / 24 / 30 kW)
- 3 x 16 A / 3 x 16 A / 1 x 16 A
- Fuse protection PEB unit(18 / 24 / 30 kW)
- 3 x 16 A / 3 x 35 A / 3 x 63 A
- Dimensions H/W/D, in cm
- 85 / 96 / 53
- For sauna cabin size(18 / 24 / 30 kW)
- 24 - 35 m³ / 35 - 45 m³ / 45 - 65 m³
- Min. size air inlet and outlet(18 / 24 / 30 kW)
- 50 x 6 cm / 50 x 8 cm / 50 x 10 cm
- Weight withouth rocks
- 85 kg
- Stone filling
- 120 kg
- Power extension required
- PEB 10 / PEB 18 (H) / PEB 36 (H)
- Power
- Item no.
- 18,0 kW
- 948116
- 24,0 kW
- 948117
- 30,0 kW
- 948118
- 18,0 kW black
- 948821
- 24,0 kW black
- 948822
- 30,0 kW black
- 948823
- Power
- Item no.
- 18,0 kW
- 948119
- 24,0 kW
- 948120
- 30,0 kW
- 948121
- 18,0 kW black
- 948824
- 24,0 kW black
- 948825
- 30,0 kW black
- 948826
