EOS Gracil series 6.0 kW
Точные сроки и условия подтвердит менеджер перед оплатой.
Отправить конфигурацию товара менеджеру и обсудить детали
Описание товара
Floor‑standing models

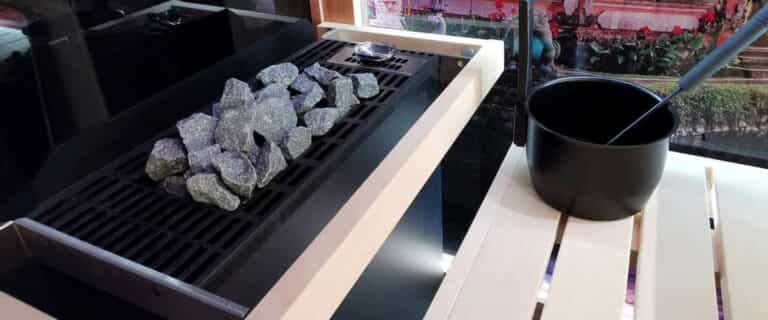

EOS Gracil is a compact floor‑standing unit for Finnish (dry) saunas. The depth is only 25 cm, making it very space‑saving. Because the terminal box is recessed, it can be placed directly in front of glass panels. The black Guard rail is optional.
Wall‑mounting models
EOS Gracil W is designed for wall mounting in Finnish (dry) saunas. The total depth, including a 3 cm wall gap, is 27,5 cm. It is available in black and also offers the black Guard rail as an option.
Integrated vaporizer versions
The EOS Bi‑O Gracil line provides the same compact designs but with an integrated vaporizer for flexible climate forms. The floor‑standing version remains 25 cm deep, while the wall‑mounted version retains the 27,5 cm depth. Both models are available in black.
Optional accessories
Optional rear wall cover panels (black) are available for each variant, as well as the optional Guard rail for added safety and style.
Характеристики
- Мощность
- 6,0 kW black
- Electrical connection
- 400 V 3N ~ 50/60 Hz
- Fuse protection (control unit)
- 3 x 16 A
- Dimensions H/W/D, in cm
- 76 / 50,5 / 25 (EOS Gracil) 74 / 50,5 / 27,5 (EOS Gracil W)
- For sauna cabin size (6,0 / 7,5 / 9,0 kW)
- 6 - 8 m³ / 7 - 10 m³ / 9 - 14 m³
- Min. size air inlet and outlet (6,0 / 7,5 / 9,0 kW)
- 35 x 5 cm / 35 x 6 cm / 35 x 6 cm
- Weight withouth rocks (6,0 / 7,5 / 9,0 kW)
- 20,5 kg / 21,0 kg / 21,5 kg (EOS Gracil) 20,6 kg / 21,1 kg / 21,6 kg (EOS Gracil W)
- Stone filling
- 20 kg
- Power extension required
- no
- Electrical connection
- 400 V 3N ~ 50/60 Hz
- Power vaporizer
- 750 W
- Fuse protection (control unit)
- 3 x 16 A
- Dimensions H/W/D, in cm
- 76 / 56 / 25 (EOS Bi-O Gracil) 74 / 56 / 27,5 (EOS Bi-O Gracil W)
- For sauna cabin size (4,5 / 6,0 / 7,5 / 9,0 kW)
- 4 - 6 m³ / 6 - 8 m³ / 7 - 10 m³ / 9 - 14 m³
- Min. size of air intake and outlet (4,5 / 6,0 / 7,5 / 9,0 kW)
- 35 x 5 cm / 35 x 6 cm / 35 x 6 cm / 35 x 6 cm
- Weight without stones and packaging (4,5 / 6,0 / 7,5 / 9,0 kW)
- 26,0 kg / 26,5 kg / 27,0 kg / 27,5 kg (EOS Bi-O Gracil) 23,0 kg / 23,5 kg / 24,0 kg / 24,5 kg (EOS Bi-O Gracil W)
- Stone filling
- 20 kg
- Power extension needed
- no
- Power
- Item no.
- 6,0 kW
- 946755
- 7,5 kW
- 946756
- 9,0 kW
- 946757
- 6,0 kW black
- 948196
- 7,5 kW black
- 947243
- 9,0 kW black
- 947244
- Power
- Item no.
- 6,0 kW
- 947157
- 7,5 kW
- 947158
- 9,0 kW
- 947159
- 6,0 kW black
- 948197
- 7,5 kW black
- 947245
- 9,0 kW black
- 947246
- Power
- Item no.
- 7,5 kW
- 946987A
- 9,0 kW
- 946988A
- 7,5 kW black
- 947247
- 9,0 kW black
- 947248
- Power
- Item no.
- 7,5 kW
- 947161A
- 9,0 kW
- 947162A
- 7,5 kW black
- 947327
- 9,0 kW black
- 947328
