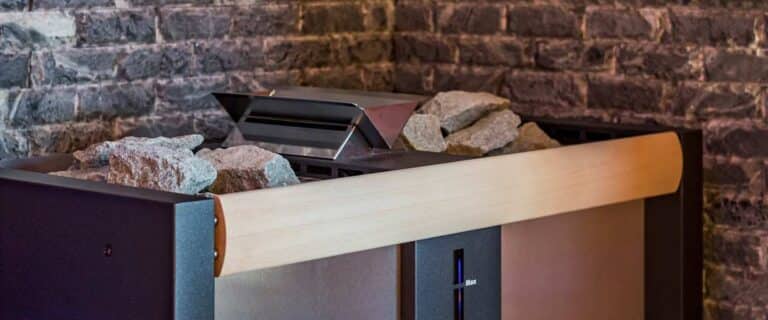

EOS Herkules XL S120 HD series 30.0 kW
Точные сроки и условия подтвердит менеджер перед оплатой.
Отправить конфигурацию товара менеджеру и обсудить детали
Описание товара
Model Overview MGA XL S120 HD
The EOS Herkules XL S120 HD is a floor‑standing model designed for Finnish (dry) saunas. Available in black, this heater is constructed to accommodate up to 120 kg of stones.
Model Overview MGA XL S120 Vapor HD
The EOS Herkules XL S120 Vapor HD is a floor‑standing variant that integrates a vaporizer for flexible выигресс climates. Like the HD model, it can hold up to 120 kg of stones and is available in black.
Herkules Fragrance Dosing Dish
The Herkules Fragrance provides a vaporizer dish arrangement with an integrated water supply. It is designed for retrofitting onto the EOS Herkules XL S120 models.
During installation, the dish is mounted in the middle of the left and right side walls ofaupable heater.
It is intended to be filled with water and, if desired, infusion preparations or essential oils; no flammable substances or materials may be placed in the dishes.
The system works with an upstream automatic vaporizer dosing unit that controls water fill quantity, dosing cycle, and aroma quantity.
Installation Guidance
To install the fragrance rail, locate the middle section of the left and right side walls of the sauna heater. Mount the dish arrangement securely, ensuring a watertight seal for the integrated supply. Connect the upstream dosing unit as described in the appliance manual.
Additional Information
Item no.: 946826
Характеристики
- Мощность
- 30,0 kW
- Electrical connection
- 400 V 3N ~ 50/60 Hz
- Fuse protection control unit(18 / 24 / 30 kW)
- 3 x 16 A / 3 x 16 A / 1 x 16 A
- Fuse protection PEB unit(18 / 24 / 30 kW)
- 3 x 16 A / 3 x 35 A / 3 x 63 A
- Dimensions H/W/D, in cm
- 85 / 96 / 53
- For sauna cabin size(18 / 24 / 30 kW)
- 24 - 35 m³ / 35 - 45 m³ / 45 - 65 m³
- Min. size air inlet and outlet(18 / 24 / 30 kW)
- 50 x 6 cm / 50 x 8 cm / 50 x 10 cm
- Weight withouth rocks
- 85 kg
- Stone filling
- 120 kg
- Power extension required
- PEB 10 / PEB 18 (H) / PEB 36 (H)
- Power
- Item no.
- 18,0 kW
- 948116
- 24,0 kW
- 948117
- 30,0 kW
- 948118
- 18,0 kW black
- 948821
- 24,0 kW black
- 948822
- 30,0 kW black
- 948823
- Power
- Item no.
- 18,0 kW
- 948119
- 24,0 kW
- 948120
- 30,0 kW
- 948121
- 18,0 kW black
- 948824
- 24,0 kW black
- 948825
- 30,0 kW black
- 948826
