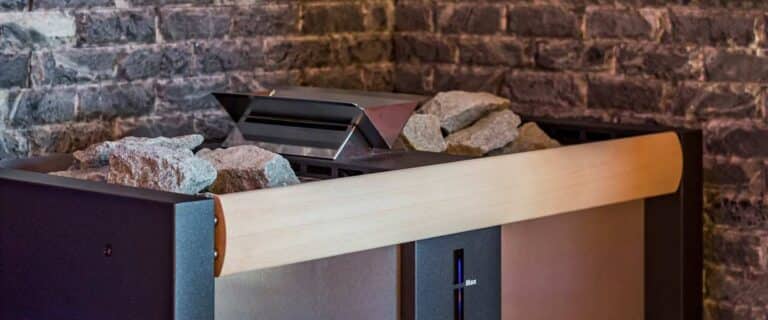

EOS Herkules XL S120 HD series 18.0 kW
Точные сроки и условия подтвердит менеджер перед оплатой.
Отправить конфигурацию товара менеджеру и обсудить детали
Описание товара
Floor-standing Model for Finnish Sauna
EOS Herkules XL S120 HD is a floor-standing model designed for the Finnish (dry) sauna. The rock store accommodates up to 120 kg of stones, ensuring optimal heat distribution and steam production. This black model is suitable for standard sauna installations.
Vapor HD Model with Integrated Vaporizer
EOS Herkules XL S120 Vapor HD combines the functionality of a floor-standing heater with an integrated vaporizer. This allows for flexible climate control in the sauna, enabling both dry and humid heat sessions. The rock store again fits up to 120 kg stones, maintaining consistent performance.
Herkules Fragrance Vaporizer Dish
The Herkules Fragrance Vaporizer dish is designed for retrofitting onto the EOS Herkules XL S120 heater. It is mounted in the middle of the left and right side wall and can be filled with water and optional sauna infusion preparations or essential oils. Important: no flammable materials should be placed in the dish. It works with an automatic vaporizer dosing unit to control water quantity, dosing cycles, and aroma intensity.
Item Information
Item no. 946826
Характеристики
- Мощность
- 18,0 kW
- Electrical connection
- 400 V 3N ~ 50/60 Hz
- Fuse protection control unit(18 / 24 / 30 kW)
- 3 x 16 A / 3 x 16 A / 1 x 16 A
- Fuse protection PEB unit(18 / 24 / 30 kW)
- 3 x 16 A / 3 x 35 A / 3 x 63 A
- Dimensions H/W/D, in cm
- 85 / 96 / 53
- For sauna cabin size(18 / 24 / 30 kW)
- 24 - 35 m³ / 35 - 45 m³ / 45 - 65 m³
- Min. size air inlet and outlet(18 / 24 / 30 kW)
- 50 x 6 cm / 50 x 8 cm / 50 x 10 cm
- Weight withouth rocks
- 85 kg
- Stone filling
- 120 kg
- Power extension required
- PEB 10 / PEB 18 (H) / PEB 36 (H)
- Power
- Item no.
- 18,0 kW
- 948116
- 24,0 kW
- 948117
- 30,0 kW
- 948118
- 18,0 kW black
- 948821
- 24,0 kW black
- 948822
- 30,0 kW black
- 948823
- Power
- Item no.
- 18,0 kW
- 948119
- 24,0 kW
- 948120
- 30,0 kW
- 948121
- 18,0 kW black
- 948824
- 24,0 kW black
- 948825
- 30,0 kW black
- 948826
