EOS Gracil Series 9.0 kW
Точные сроки и условия подтвердит менеджер перед оплатой.
Отправить конфигурацию товара менеджеру и обсудить детали
Описание товара

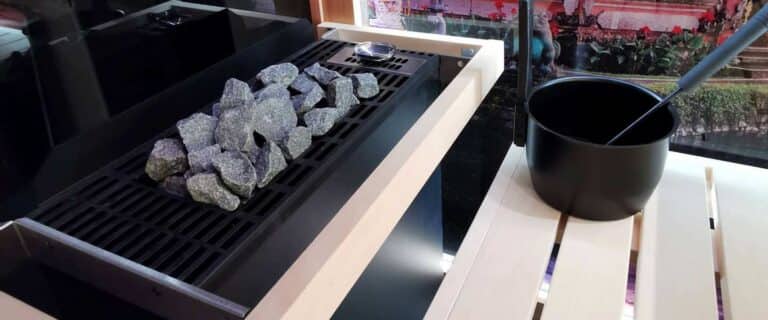

EOS Gracil Floor-standing model for the Finnish (dry) sauna
Space-saving construction — only 25 cm depth. Thanks to the recessed terminal box and optional rear wall cover panel, ideal for placement in front of glass panels. Optional black guard rail and optional black rear wall cover panel.
EOS Gracil W Wall-mounting model for the Finnish (dry) sauna
Space-saving construction — only 27.5 cm total depth (including 3 cm wall gap). Optional black guard rail. Optional black rear wall cover panel.
EOS Bi-O Gracil Floor-standing model with integrated vaporizer
Space-saving construction — only 25 cm depth. Thanks to the recessed terminal box and optional rear wall cover panel, ideal for placement in front of glass panels. Optional black rear wall cover panel. Features integrated vaporizer for flexible climate control.
EOS Bi-O Gracil W Wall-mounting model with integrated vaporizer
Space-saving construction — only 27.5 cm total depth (including 3 cm wall gap). Features integrated vaporizer for flexible climate control. Optional black rear wall cover panel.
Характеристики
- Мощность
- 9,0 kW black
- Electrical connection
- 400 V 3N ~ 50/60 Hz
- Fuse protection (control unit)
- 3 x 16 A
- Dimensions H/W/D, in cm
- 76 / 50,5 / 25 (EOS Gracil) 74 / 50,5 / 27,5 (EOS Gracil W)
- For sauna cabin size (6,0 / 7,5 / 9,0 kW)
- 6 - 8 m³ / 7 - 10 m³ / 9 - 14 m³
- Min. size air inlet and outlet (6,0 / 7,5 / 9,0 kW)
- 35 x 5 cm / 35 x 6 cm / 35 x 6 cm
- Weight withouth rocks (6,0 / 7,5 / 9,0 kW)
- 20,5 kg / 21,0 kg / 21,5 kg (EOS Gracil) 20,6 kg / 21,1 kg / 21,6 kg (EOS Gracil W)
- Stone filling
- 20 kg
- Power extension required
- no
- Electrical connection
- 400 V 3N ~ 50/60 Hz
- Power vaporizer
- 750 W
- Fuse protection (control unit)
- 3 x 16 A
- Dimensions H/W/D, in cm
- 76 / 56 / 25 (EOS Bi-O Gracil) 74 / 56 / 27,5 (EOS Bi-O Gracil W)
- For sauna cabin size (4,5 / 6,0 / 7,5 / 9,0 kW)
- 4 - 6 m³ / 6 - 8 m³ / 7 - 10 m³ / 9 - 14 m³
- Min. size of air intake and outlet (4,5 / 6,0 / 7,5 / 9,0 kW)
- 35 x 5 cm / 35 x 6 cm / 35 x 6 cm / 35 x 6 cm
- Weight without stones and packaging (4,5 / 6,0 / 7,5 / 9,0 kW)
- 26,0 kg / 26,5 kg / 27,0 kg / 27,5 kg (EOS Bi-O Gracil) 23,0 kg / 23,5 kg / 24,0 kg / 24,5 kg (EOS Bi-O Gracil W)
- Stone filling
- 20 kg
- Power extension needed
- no
- Power
- Item no.
- 6,0 kW
- 946755
- 7,5 kW
- 946756
- 9,0 kW
- 946757
- 6,0 kW black
- 948196
- 7,5 kW black
- 947243
- 9,0 kW black
- 947244
- Power
- Item no.
- 6,0 kW
- 947157
- 7,5 kW
- 947158
- 9,0 kW
- 947159
- 6,0 kW black
- 948197
- 7,5 kW black
- 947245
- 9,0 kW black
- 947246
- Power
- Item no.
- 7,5 kW
- 946987A
- 9,0 kW
- 946988A
- 7,5 kW black
- 947247
- 9,0 kW black
- 947248
- Power
- Item no.
- 7,5 kW
- 947161A
- 9,0 kW
- 947162A
- 7,5 kW black
- 947327
- 9,0 kW black
- 947328
