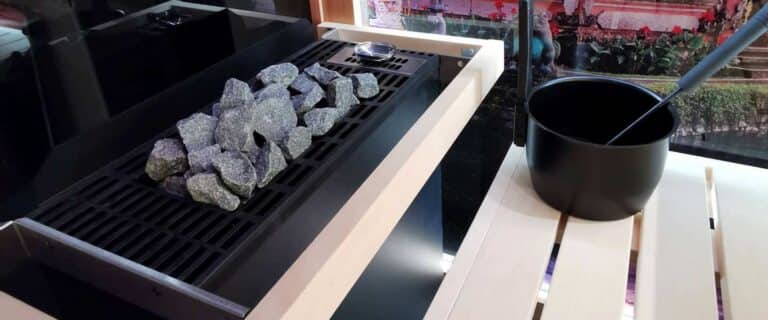

EOS Gracil series 9.0 kW
Точные сроки и условия подтвердит менеджер перед оплатой.
Отправить конфигурацию товара менеджеру и обсудить детали
Описание товара
EOS Gracil Floor-standing model for the Finnish (dry) sauna. Very space-saving construction — only 25 cm depth. Thanks to the recessed terminal box and optional rear wall cover Panel, ideal for placement in front of glass panels. EOS Gracil black Guard rail optional Guard rail optional rear wall cover panel optional rear wall cover panel (black) optional EOS Gracil W Wall-mounting model for the Finnish (dry) sauna. Very space-saving construction — only 27,5 cm total depth (incl. 3 cm wall gap). EOS Gracil W black Guard rail optional EOS Gracil W black — Guard rail optional EOS Bi-O Gracil Floor-standing model with integrated vaporizer for flexible climate forms. Very space-saving construction — only 25 cm depth. Thanks to the recessed terminal box and optional rear wall cover ^=
Характеристики
- Мощность
- 9,0 kW black
- Electrical connection
- 400 V 3N ~ 50/60 Hz
- Fuse protection (control unit)
- 3 x 16 A
- Dimensions H/W/D, in cm
- 76 / 50,5 / 25 (EOS Gracil) 74 / 50,5 / 27,5 (EOS Gracil W)
- For sauna cabin size (6,0 / 7,5 / 9,0 kW)
- 6 - 8 m³ / 7 - 10 m³ / 9 - 14 m³
- Min. size air inlet and outlet (6,0 / 7,5 / 9,0 kW)
- 35 x 5 cm / 35 x 6 cm / 35 x 6 cm
- Weight withouth rocks (6,0 / 7,5 / 9,0 kW)
- 20,5 kg / 21,0 kg / 21,5 kg (EOS Gracil) 20,6 kg / 21,1 kg / 21,6 kg (EOS Gracil W)
- Stone filling
- 20 kg
- Power extension required
- no
- Electrical connection
- 400 V 3N ~ 50/60 Hz
- Power vaporizer
- 750 W
- Fuse protection (control unit)
- 3 x 16 A
- Dimensions H/W/D, in cm
- 76 / 56 / 25 (EOS Bi-O Gracil) 74 / 56 / 27,5 (EOS Bi-O Gracil W)
- For sauna cabin size (4,5 / 6,0 / 7,5 / 9,0 kW)
- 4 - 6 m³ / 6 - 8 m³ / 7 - 10 m³ / 9 - 14 m³
- Min. size of air intake and outlet (4,5 / 6,0 / 7,5 / 9,0 kW)
- 35 x 5 cm / 35 x 6 cm / 35 x 6 cm / 35 x 6 cm
- Weight without stones and packaging (4,5 / 6,0 / 7,5 / 9,0 kW)
- 26,0 kg / 26,5 kg / 27,0 kg / 27,5 kg (EOS Bi-O Gracil) 23,0 kg / 23,5 kg / 24,0 kg / 24,5 kg (EOS Bi-O Gracil W)
- Stone filling
- 20 kg
- Power extension needed
- no
- Power
- Item no.
- 6,0 kW
- 946755
- 7,5 kW
- 946756
- 9,0 kW
- 946757
- 6,0 kW black
- 948196
- 7,5 kW black
- 947243
- 9,0 kW black
- 947244
- Power
- Item no.
- 6,0 kW
- 947157
- 7,5 kW
- 947158
- 9,0 kW
- 947159
- 6,0 kW black
- 948197
- 7,5 kW black
- 947245
- 9,0 kW black
- 947246
- Power
- Item no.
- 7,5 kW
- 946987A
- 9,0 kW
- 946988A
- 7,5 kW black
- 947247
- 9,0 kW black
- 947248
- Power
- Item no.
- 7,5 kW
- 947161A
- 9,0 kW
- 947162A
- 7,5 kW black
- 947327
- 9,0 kW black
- 947328
