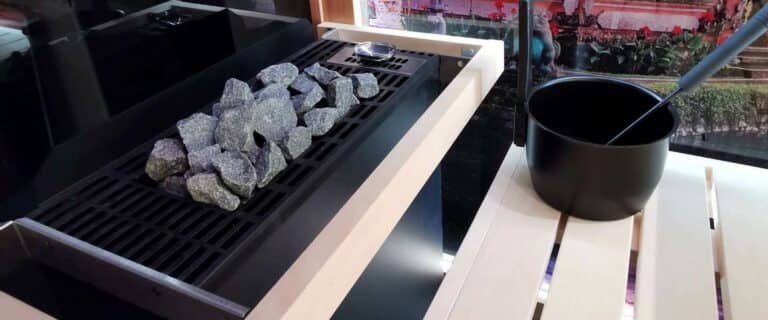

EOS Gracil series 7.5 kW
Точные сроки и условия подтвердит менеджер перед оплатой.
Отправить конфигурацию товара менеджеру и обсудить детали
Описание товара
EOS Gracil Floor-standing model
Very space-saving construction with only 25 cm depth. Features a recessed terminal box and an optional rear wall cover panel, making it ideal for placement in front of glass panels. Guard rail is optional and available in black.
EOS Gracil W Wall-mounting model
Very space-saving construction with total depth of 27,5 cm (including 3 cm wall gap). Guard rail is optional in black, and a rear wall cover panel is optional.
EOS Bi-O Gracil Floor-standing model
Very space-saving construction with only 25 cm depth. Includes an integrated vapor Kuch, a recessed terminal box, and an optional rear wall cover panel, ideal for placement in front of glass panels. The rear wall cover panel is available in black.
EOS Bi-O Gracil W Wall-mounting model
Very space-saving construction with total depth of 27,5 cm (including 3 cm wall gap). Features an integrated vaporizer for flexible climate forms, a recessed terminal box, and optional black rear wall cover panel. Guard rail is optional in black.
Характеристики
- Мощность
- 7,5 kW
- Electrical connection
- 400 V 3N ~ 50/60 Hz
- Fuse protection (control unit)
- 3 x 16 A
- Dimensions H/W/D, in cm
- 76 / 50,5 / 25 (EOS Gracil) 74 / 50,5 / 27,5 (EOS Gracil W)
- For sauna cabin size (6,0 / 7,5 / 9,0 kW)
- 6 - 8 m³ / 7 - 10 m³ / 9 - 14 m³
- Min. size air inlet and outlet (6,0 / 7,5 / 9,0 kW)
- 35 x 5 cm / 35 x 6 cm / 35 x 6 cm
- Weight withouth rocks (6,0 / 7,5 / 9,0 kW)
- 20,5 kg / 21,0 kg / 21,5 kg (EOS Gracil) 20,6 kg / 21,1 kg / 21,6 kg (EOS Gracil W)
- Stone filling
- 20 kg
- Power extension required
- no
- Electrical connection
- 400 V 3N ~ 50/60 Hz
- Power vaporizer
- 750 W
- Fuse protection (control unit)
- 3 x 16 A
- Dimensions H/W/D, in cm
- 76 / 56 / 25 (EOS Bi-O Gracil) 74 / 56 / 27,5 (EOS Bi-O Gracil W)
- For sauna cabin size (4,5 / 6,0 / 7,5 / 9,0 kW)
- 4 - 6 m³ / 6 - 8 m³ / 7 - 10 m³ / 9 - 14 m³
- Min. size of air intake and outlet (4,5 / 6,0 / 7,5 / 9,0 kW)
- 35 x 5 cm / 35 x 6 cm / 35 x 6 cm / 35 x 6 cm
- Weight without stones and packaging (4,5 / 6,0 / 7,5 / 9,0 kW)
- 26,0 kg / 26,5 kg / 27,0 kg / 27,5 kg (EOS Bi-O Gracil) 23,0 kg / 23,5 kg / 24,0 kg / 24,5 kg (EOS Bi-O Gracil W)
- Stone filling
- 20 kg
- Power extension needed
- no
- Power
- Item no.
- 6,0 kW
- 946755
- 7,5 kW
- 946756
- 9,0 kW
- 946757
- 6,0 kW black
- 948196
- 7,5 kW black
- 947243
- 9,0 kW black
- 947244
- Power
- Item no.
- 6,0 kW
- 947157
- 7,5 kW
- 947158
- 9,0 kW
- 947159
- 6,0 kW black
- 948197
- 7,5 kW black
- 947245
- 9,0 kW black
- 947246
- Power
- Item no.
- 7,5 kW
- 946987A
- 9,0 kW
- 946988A
- 7,5 kW black
- 947247
- 9,0 kW black
- 947248
- Power
- Item no.
- 7,5 kW
- 947161A
- 9,0 kW
- 947162A
- 7,5 kW black
- 947327
- 9,0 kW black
- 947328
