EOS Mythos series 15.0 kW
Точные сроки и условия подтвердит менеджер перед оплатой.
Отправить конфигурацию товара менеджеру и обсудить детали
Описание товара
General description

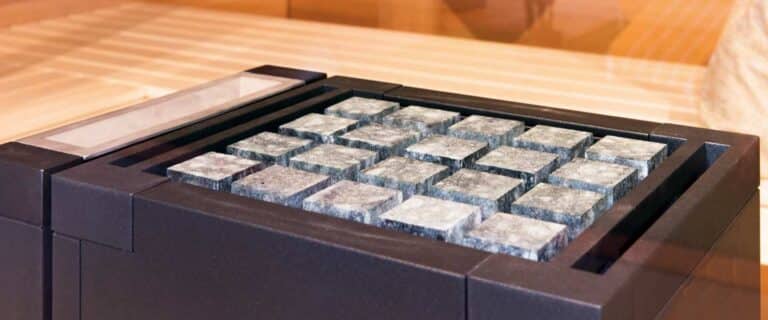

EOS Mythos is a series of floor-standing sauna heaters with stone volumes of 35 kg (S35 model) and 45 kg (S45 model). Available in 7.5 kW and 9.0 kW versions for S35 (sauna up to ≈14 m³) and 12.0 kW and 15.0 kW versions for S45 (sauna up to ≈25 m³). The heaters can be equipped with Cubius stones, external evaporators, and EOSafe L safety systems.
S35 models
The S35 series is available in several designs: Anthracite (pearl effect), black, and white. Anthracite options can be equipped with Cubius stones upon request. Black and white models come with included Cubius stones.
S45 models
The S45 series is similar to S35 but with a larger stone volume of 45 kg and higher power output. Available designs include Anthracite (pearl effect), black, white, «Water Reflection», and dark bronze. As with S35, Anthracite options can be equipped with Cubius stones by choice, while other designs come with included Cubius stones.
Vapor options
Both S35 and S45 series offer Vapor versions with external evaporators, allowing for flexible climate control. These are available in Anthracite, matte black, matte white, «Water Reflection» designs and can be equipped with Cubius stones. Some models include an additional protective guard for the heater.
Accessories
Additional accessories: Cubius stones (standard and Loop), external evaporator, EOSafe L safety system, and wooden protective guard with mounting hardware. Also available are kits like Mythos + EOS Scent Trophy (model W with special height stones, model S with protective guard) and Mythos Vapor + EOSafe L sets.
Характеристики
- Мощность
- 15,0 kW
- Electrical connection
- 400 V 3N ~ 50/60 Hz
- Dimensions H/W/D, in cm
- 84 / 42 / 37 (EOS Mythos S35) 84 / 50 / 37 (EOS Mythos S45)
- For sauna cabin size (7,5 / 9,0 / 12,0 / 15,0 kW)
- 8 - 12 m³ / 10 - 14 m³ / 14 - 18 m³ / 18 - 25 m³
- Min. size air inlet and outlet (7,5 / 9,0 / 12,0 / 15,0 kW)
- 35 x 5 cm / 35 x 6 cm / 35 x 7 cm / 35 x 9 cm
- Fuse protection control unit
- 3 x 16 A
- Weight withouth rocks
- 34 kg (EOS Mythos S35) 40 kg (EOS Mythos S45)
- Stone filling
- 35 kg (EOS Mythos S35) 45 kg (EOS Mythos S45)
- Power extension required (7,5 - 9 kW / 12 - 15 kW)
- no / PEB 10
- Electrical connection
- 230 V 1N ~ 50 Hz
- Vaporizer power
- 2,0 kW / 3,0 kW
- Vaporizer dimensions H/W/D, in cm
- 84 / 8 / 37
- Vaporizer water tank volume
- 10 l
- Connection control unit - vaprozer
- 5 x 1,5 mm²
- Power
- Item no.
- 7,5 kW
- 945488
- 9,0 kW
- 945489
- 7,5 kW
- 946066
- 9,0 kW
- 946067
- 7,5 kW
- 945988
- 9,0 kW
- 945989
- 7,5 kW
- 949591
- 9,0 kW
- 949592
- 7,5 kW
- 949408
- 9,0 kW
- 949409
- Power
- Item no.
- 12,0 kW
- 945490
- 15,0 kW
- 945491
- 12,0 kW
- 946068
- 15,0 kW
- 946069
- 12,0 kW
- 945991
- 15,0 kW
- 945992
- 12,0 kW
- 949589
- 15,0 kW
- 949590
- 12,0 kW
- 949406
- 15,0 kW
- 949407
- Power
- Item no.
- 3,0 kW
- 945572
- 3,0 kW
- 945493
- 6,0 kW
- 946250
- 2,0 kW
- 945571
- 2,0 kW
- 945492
- 4,0 kW
- 946253
- 3,0 kW
- 945902
- 3,0 kW
- 945906
- 6,0 kW
- 946262
- 2,0 kW
- 945901
- 2,0 kW
- 945905
- 4,0 kW
- 946265
- 3,0 kW
- 945900
- 3,0 kW
- 945904
- 6,0 kW
- 946256
- 2,0 kW
- 945899
- 2,0 kW
- 945903
- 4,0 kW
- 946259
- 3,0 kW
- 949595
- 3,0 kW
- 949596
- 6,0 kW
- 949602
- 2,0 kW
- 949593
- 2,0 kW
- 949594
- 4,0 kW
- 949599
- 3,0 kW
- 949404
- 3,0 kW
- 949405
- 6,0 kW
- 949415
- 2,0 kW
- 949402
- 2,0 kW
- 949403
- 4,0 kW
- 949412
