EOS Mythos series 12.0 kW
Точные сроки и условия подтвердит менеджер перед оплатой.
Отправить конфигурацию товара менеджеру и обсудить детали
Описание товара
EOS Mythos S35 – Overview and Variants
EOS Mythos S35 is a floor‑standing sauna heater with a stone volume of 35 kg, offered in 7.5 kW and 9.0 kW versions suitable for sauna cabins up to approximately 14 m³. The model is available in several finishes: anthracite pearl‑effect design with optional Cubius stones, black finish with inclusive Cubius stones, and white finish with inclusive Cubius stones.
EOS Mythos S45 – Overview and Variants

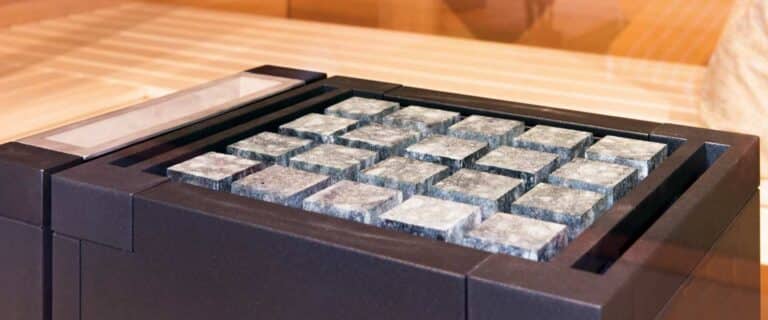

EOS Mythos S45 features a larger stone volume of 45 kg, available in 12.0 kW and 15.0 kW versions for cabins up to about 25 m³. Finish options include anthracite pearl‑effect (optional Cubius stones), black (inclusive Cubius stones), white (inclusive Cubius stones), “Water Reflection” (inclusive Cubius stones) and dark bronze (inclusive Cubius stones).
EOS Mythos Vapor – Flexible Climate Solutions
The EOS Mythos Vapor external vaporizer provides versatile climate control for both S35 and S45 series. Configurations range from anthracite pearl‑effect with optional Cubius stones and a left‑side vaporizer, to matt black or white finishes with left, right, or dual‑side vaporizers, and optional heater guard rails. Specialized variants include “Water Reflection” with left‑side vaporizer and combos with additional safety guard features.
Accessories and Combination Packages
Optional accessories include Cubius sauna stones, Cubius Loop sauna stones, vaporizers, EOSafe L safety system, and wooden heater guards with mounting brackets. Combination packages are also offered, such as EOS Mythos + EOS Scent Trophy W + Cubius‑sauna stones (special heights), EOS Mythos + EOS Scent Trophy S + heater guard rail, and EOS Mythos Vapor + EOSafe L.
Характеристики
- Мощность
- 12,0 kW
- Electrical connection
- 400 V 3N ~ 50/60 Hz
- Dimensions H/W/D, in cm
- 84 / 42 / 37 (EOS Mythos S35) 84 / 50 / 37 (EOS Mythos S45)
- For sauna cabin size (7,5 / 9,0 / 12,0 / 15,0 kW)
- 8 - 12 m³ / 10 - 14 m³ / 14 - 18 m³ / 18 - 25 m³
- Min. size air inlet and outlet (7,5 / 9,0 / 12,0 / 15,0 kW)
- 35 x 5 cm / 35 x 6 cm / 35 x 7 cm / 35 x 9 cm
- Fuse protection control unit
- 3 x 16 A
- Weight withouth rocks
- 34 kg (EOS Mythos S35) 40 kg (EOS Mythos S45)
- Stone filling
- 35 kg (EOS Mythos S35) 45 kg (EOS Mythos S45)
- Power extension required (7,5 - 9 kW / 12 - 15 kW)
- no / PEB 10
- Electrical connection
- 230 V 1N ~ 50 Hz
- Vaporizer power
- 2,0 kW / 3,0 kW
- Vaporizer dimensions H/W/D, in cm
- 84 / 8 / 37
- Vaporizer water tank volume
- 10 l
- Connection control unit - vaprozer
- 5 x 1,5 mm²
- Power
- Item no.
- 7,5 kW
- 945488
- 9,0 kW
- 945489
- 7,5 kW
- 946066
- 9,0 kW
- 946067
- 7,5 kW
- 945988
- 9,0 kW
- 945989
- 7,5 kW
- 949591
- 9,0 kW
- 949592
- 7,5 kW
- 949408
- 9,0 kW
- 949409
- Power
- Item no.
- 12,0 kW
- 945490
- 15,0 kW
- 945491
- 12,0 kW
- 946068
- 15,0 kW
- 946069
- 12,0 kW
- 945991
- 15,0 kW
- 945992
- 12,0 kW
- 949589
- 15,0 kW
- 949590
- 12,0 kW
- 949406
- 15,0 kW
- 949407
- Power
- Item no.
- 3,0 kW
- 945572
- 3,0 kW
- 945493
- 6,0 kW
- 946250
- 2,0 kW
- 945571
- 2,0 kW
- 945492
- 4,0 kW
- 946253
- 3,0 kW
- 945902
- 3,0 kW
- 945906
- 6,0 kW
- 946262
- 2,0 kW
- 945901
- 2,0 kW
- 945905
- 4,0 kW
- 946265
- 3,0 kW
- 945900
- 3,0 kW
- 945904
- 6,0 kW
- 946256
- 2,0 kW
- 945899
- 2,0 kW
- 945903
- 4,0 kW
- 946259
- 3,0 kW
- 949595
- 3,0 kW
- 949596
- 6,0 kW
- 949602
- 2,0 kW
- 949593
- 2,0 kW
- 949594
- 4,0 kW
- 949599
- 3,0 kW
- 949404
- 3,0 kW
- 949405
- 6,0 kW
- 949415
- 2,0 kW
- 949402
- 2,0 kW
- 949403
- 4,0 kW
- 949412
