EOS Mythos Series 7.5 kW
Точные сроки и условия подтвердит менеджер перед оплатой.
Отправить конфигурацию товара менеджеру и обсудить детали
Описание товара
S35 Floor-standing Sauna Heater – Specifications
EOS Mythos S35 Floor-standing sauna heater with a stone volume of 35 kg, offered in 7.5 kW and 9.0 kW versions for sauna cabins up to approximately 14 m³.
S35 Design and Stone Options

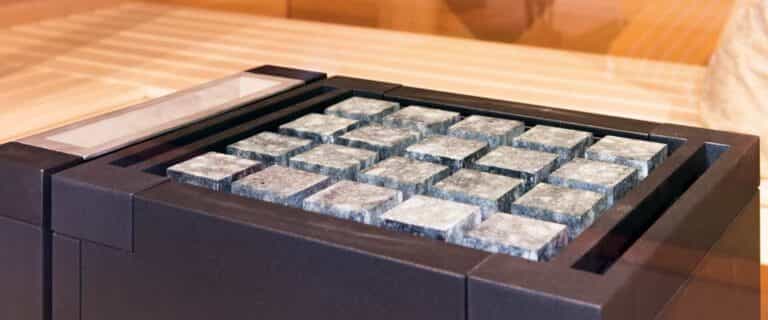

The S35 model is available with an anthracite pearl-effect finish (with optional Cubius stones), a black finish (with inclusive Cubius stones), and a white finish (with inclusive Cubius stones).
S45 Floor-standing Sauna Heater – Specifications and Design
EOS Mythos S45 Floor-standing sauna heater with a stone volume of 45 kg, offered in 12.0 kW and 15.0 kW versions for sauna cabins up to approximately 25 m³. Designs include an anthracite pearl-effect finish (with optional Cubius stones), black, white, “Water Reflection”, and dark bronze finishes, all with inclusive Cubius stones, and optional Cubius stones for the anthracite version.
Vapor Options and Accessories
Both S35 and S45 families provide an external vaporizer for flexible climate control, with variants featuring anthracite pearl-effect or matt black/white finishes, optional Cubius stones, left- or right-hand vaporizer placement, and optional heater guard rail. Optional accessories include Cubius sauna stones, Cubius Loop stones, the vaporizer unit, EOSafe L safety system, a wooden heater guard with mounting brackets, and combinations such as EOS Mythos with EOS Scent Trophy W or S plus heater guard rail or vaporizer.
Характеристики
- Мощность
- 7,5 kW
- Electrical connection
- 400 V 3N ~ 50/60 Hz
- Dimensions H/W/D, in cm
- 84 / 42 / 37 (EOS Mythos S35) 84 / 50 / 37 (EOS Mythos S45)
- For sauna cabin size (7,5 / 9,0 / 12,0 / 15,0 kW)
- 8 - 12 m³ / 10 - 14 m³ / 14 - 18 m³ / 18 - 25 m³
- Min. size air inlet and outlet (7,5 / 9,0 / 12,0 / 15,0 kW)
- 35 x 5 cm / 35 x 6 cm / 35 x 7 cm / 35 x 9 cm
- Fuse protection control unit
- 3 x 16 A
- Weight withouth rocks
- 34 kg (EOS Mythos S35) 40 kg (EOS Mythos S45)
- Stone filling
- 35 kg (EOS Mythos S35) 45 kg (EOS Mythos S45)
- Power extension required (7,5 - 9 kW / 12 - 15 kW)
- no / PEB 10
- Electrical connection
- 230 V 1N ~ 50 Hz
- Vaporizer power
- 2,0 kW / 3,0 kW
- Vaporizer dimensions H/W/D, in cm
- 84 / 8 / 37
- Vaporizer water tank volume
- 10 l
- Connection control unit - vaprozer
- 5 x 1,5 mm²
- Power
- Item no.
- 7,5 kW
- 945488
- 9,0 kW
- 945489
- 7,5 kW
- 946066
- 9,0 kW
- 946067
- 7,5 kW
- 945988
- 9,0 kW
- 945989
- 7,5 kW
- 949591
- 9,0 kW
- 949592
- 7,5 kW
- 949408
- 9,0 kW
- 949409
- Power
- Item no.
- 12,0 kW
- 945490
- 15,0 kW
- 945491
- 12,0 kW
- 946068
- 15,0 kW
- 946069
- 12,0 kW
- 945991
- 15,0 kW
- 945992
- 12,0 kW
- 949589
- 15,0 kW
- 949590
- 12,0 kW
- 949406
- 15,0 kW
- 949407
- Power
- Item no.
- 3,0 kW
- 945572
- 3,0 kW
- 945493
- 6,0 kW
- 946250
- 2,0 kW
- 945571
- 2,0 kW
- 945492
- 4,0 kW
- 946253
- 3,0 kW
- 945902
- 3,0 kW
- 945906
- 6,0 kW
- 946262
- 2,0 kW
- 945901
- 2,0 kW
- 945905
- 4,0 kW
- 946265
- 3,0 kW
- 945900
- 3,0 kW
- 945904
- 6,0 kW
- 946256
- 2,0 kW
- 945899
- 2,0 kW
- 945903
- 4,0 kW
- 946259
- 3,0 kW
- 949595
- 3,0 kW
- 949596
- 6,0 kW
- 949602
- 2,0 kW
- 949593
- 2,0 kW
- 949594
- 4,0 kW
- 949599
- 3,0 kW
- 949404
- 3,0 kW
- 949405
- 6,0 kW
- 949415
- 2,0 kW
- 949402
- 2,0 kW
- 949403
- 4,0 kW
- 949412
