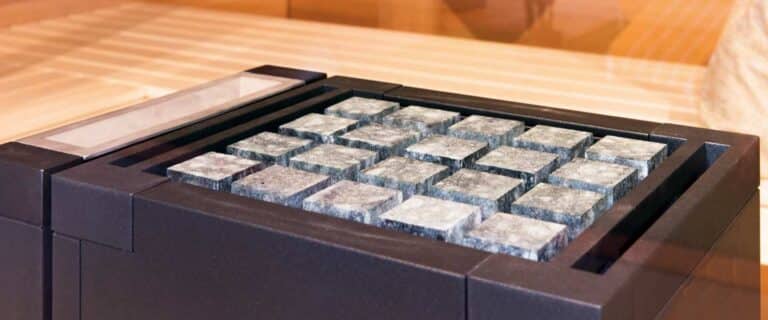

EOS Mythos series 12.0 kW
Точные сроки и условия подтвердит менеджер перед оплатой.
Отправить конфигурацию товара менеджеру и обсудить детали
Описание товара
EOS Mythos S35
EOS Mythos S35 Floor‑standing sauna heater with a stone volume of 35 kg – available in 7.5 kW and 9.0 kW versions for sauna cabins up to approx. 14 m³.
Available finishes: anthracite (pearl‑effect design, optional Cubius stones), black (inclusive Cubius stones), white (inclusive Cubius stones). Optional Cubius stones can be added to the anthracite version.
EOS Mythos S35 Vapor
EOS Mythos S35 Vapor adds an external vaporizer for flexible climate control.
Variants include: anthracite pearl‑effect design with optional Cubius stones and vaporizer (left or left + right) with optional heater guard rail; matt black finish with vaporizer (left); white finish with vaporizer (left); and similar combinations.
EOS Mythos S45
EOS మిటీ Mythos S45 Floor‑standing sauna heater with a stone volume of 45 kg – available in 12.0 kW and 15.0 kW versions for sauna cabins up to approx. 25 m³.
Available finishes: anthracite (pearl‑effect design, optional Cubius stones), black (inclusive Cubius stones), white (inclusive Cubius stones), “Water Reflection” (inclusive Cubius stones), dark bronze (inclusive Cubius stones). Optional Cubius stones can be added to the anthracite version.
EOS Mythos S45 Vapor
EOS Mythos S45 Vapor adds an external vaporizer for flexible climate control.
Variants include: anthracite pearl‑effect design with optional Cubius stones and vaporizer (right or left + right); matt white finish with vapor
Характеристики
- Мощность
- 12,0 kW
- Electrical connection
- 400 V 3N ~ 50/60 Hz
- Dimensions H/W/D, in cm
- 84 / 42 / 37 (EOS Mythos S35) 84 / 50 / 37 (EOS Mythos S45)
- For sauna cabin size (7,5 / 9,0 / 12,0 / 15,0 kW)
- 8 - 12 m³ / 10 - 14 m³ / 14 - 18 m³ / 18 - 25 m³
- Min. size air inlet and outlet (7,5 / 9,0 / 12,0 / 15,0 kW)
- 35 x 5 cm / 35 x 6 cm / 35 x 7 cm / 35 x 9 cm
- Fuse protection control unit
- 3 x 16 A
- Weight withouth rocks
- 34 kg (EOS Mythos S35) 40 kg (EOS Mythos S45)
- Stone filling
- 35 kg (EOS Mythos S35) 45 kg (EOS Mythos S45)
- Power extension required (7,5 - 9 kW / 12 - 15 kW)
- no / PEB 10
- Electrical connection
- 230 V 1N ~ 50 Hz
- Vaporizer power
- 2,0 kW / 3,0 kW
- Vaporizer dimensions H/W/D, in cm
- 84 / 8 / 37
- Vaporizer water tank volume
- 10 l
- Connection control unit - vaprozer
- 5 x 1,5 mm²
- Power
- Item no.
- 7,5 kW
- 945488
- 9,0 kW
- 945489
- 7,5 kW
- 946066
- 9,0 kW
- 946067
- 7,5 kW
- 945988
- 9,0 kW
- 945989
- 7,5 kW
- 949591
- 9,0 kW
- 949592
- 7,5 kW
- 949408
- 9,0 kW
- 949409
- Power
- Item no.
- 12,0 kW
- 945490
- 15,0 kW
- 945491
- 12,0 kW
- 946068
- 15,0 kW
- 946069
- 12,0 kW
- 945991
- 15,0 kW
- 945992
- 12,0 kW
- 949589
- 15,0 kW
- 949590
- 12,0 kW
- 949406
- 15,0 kW
- 949407
- Power
- Item no.
- 3,0 kW
- 945572
- 3,0 kW
- 945493
- 6,0 kW
- 946250
- 2,0 kW
- 945571
- 2,0 kW
- 945492
- 4,0 kW
- 946253
- 3,0 kW
- 945902
- 3,0 kW
- 945906
- 6,0 kW
- 946262
- 2,0 kW
- 945901
- 2,0 kW
- 945905
- 4,0 kW
- 946265
- 3,0 kW
- 945900
- 3,0 kW
- 945904
- 6,0 kW
- 946256
- 2,0 kW
- 945899
- 2,0 kW
- 945903
- 4,0 kW
- 946259
- 3,0 kW
- 949595
- 3,0 kW
- 949596
- 6,0 kW
- 949602
- 2,0 kW
- 949593
- 2,0 kW
- 949594
- 4,0 kW
- 949599
- 3,0 kW
- 949404
- 3,0 kW
- 949405
- 6,0 kW
- 949415
- 2,0 kW
- 949402
- 2,0 kW
- 949403
- 4,0 kW
- 949412
