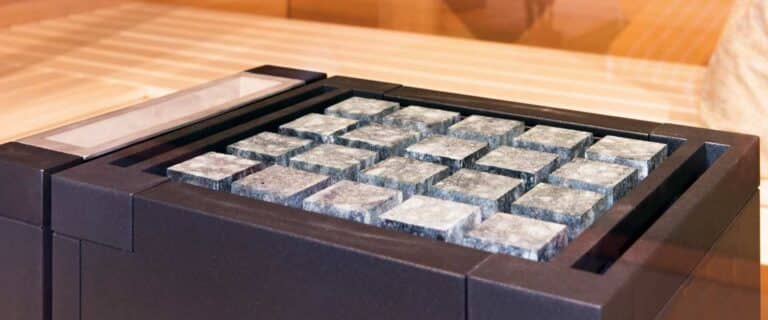

EOS Mythos series 7.5 kW
Точные сроки и условия подтвердит менеджер перед оплатой.
Отправить конфигурацию товара менеджеру и обсудить детали
Описание товара
EOS Mythos S35 models
EOS Mythos S35 stone-filled sauna heater with a stone volume of 35 kg. Available in two power ratings — 7.5 kW and 9.0 kW — for saunas up to 14 m³.
Design options: anthracite (anthracite pearl effect), black, white. You can install optional Cubius stones or use the built-in ones.
EOS Mythos S45 models
EOS Mythos S45 stone-filled sauna heater with a stone volume of 45 kg. Available in 12.0 kW and 15.0 kW power ratings — for saunas up to 25 m³.
Design options: anthracite, black, white, dark bronze, «Water Reflection». Some models come with built-in Cubius stones.
EOS Mythos Vapor — evaporation system
Vapor models allow for flexible climate creation: anthracite, matt black, white, «Water Reflection». The evaporator can be installed on the left, right, or both simultaneously.
Additionally, a heater guard rail can be installed.
Accessories and components
Optional accessories: Cubius stones, Cubius Loop ring stones, evaporator, EOSafe L safety system, wooden guard rail with mounting plates.
Special kits: EOS Mythos + EOS Scent Trophy W with Cubius height stones, EOS Mythos + EOS Scent Trophy S with guard rail, EOS Mythos Vapor + EOSafe L.
Характеристики
- Мощность
- 7,5 kW
- Electrical connection
- 400 V 3N ~ 50/60 Hz
- Dimensions H/W/D, in cm
- 84 / 42 / 37 (EOS Mythos S35) 84 / 50 / 37 (EOS Mythos S45)
- For sauna cabin size (7,5 / 9,0 / 12,0 / 15,0 kW)
- 8 - 12 m³ / 10 - 14 m³ / 14 - 18 m³ / 18 - 25 m³
- Min. size air inlet and outlet (7,5 / 9,0 / 12,0 / 15,0 kW)
- 35 x 5 cm / 35 x 6 cm / 35 x 7 cm / 35 x 9 cm
- Fuse protection control unit
- 3 x 16 A
- Weight withouth rocks
- 34 kg (EOS Mythos S35) 40 kg (EOS Mythos S45)
- Stone filling
- 35 kg (EOS Mythos S35) 45 kg (EOS Mythos S45)
- Power extension required (7,5 - 9 kW / 12 - 15 kW)
- no / PEB 10
- Electrical connection
- 230 V 1N ~ 50 Hz
- Vaporizer power
- 2,0 kW / 3,0 kW
- Vaporizer dimensions H/W/D, in cm
- 84 / 8 / 37
- Vaporizer water tank volume
- 10 l
- Connection control unit - vaprozer
- 5 x 1,5 mm²
- Power
- Item no.
- 7,5 kW
- 945488
- 9,0 kW
- 945489
- 7,5 kW
- 946066
- 9,0 kW
- 946067
- 7,5 kW
- 945988
- 9,0 kW
- 945989
- 7,5 kW
- 949591
- 9,0 kW
- 949592
- 7,5 kW
- 949408
- 9,0 kW
- 949409
- Power
- Item no.
- 12,0 kW
- 945490
- 15,0 kW
- 945491
- 12,0 kW
- 946068
- 15,0 kW
- 946069
- 12,0 kW
- 945991
- 15,0 kW
- 945992
- 12,0 kW
- 949589
- 15,0 kW
- 949590
- 12,0 kW
- 949406
- 15,0 kW
- 949407
- Power
- Item no.
- 3,0 kW
- 945572
- 3,0 kW
- 945493
- 6,0 kW
- 946250
- 2,0 kW
- 945571
- 2,0 kW
- 945492
- 4,0 kW
- 946253
- 3,0 kW
- 945902
- 3,0 kW
- 945906
- 6,0 kW
- 946262
- 2,0 kW
- 945901
- 2,0 kW
- 945905
- 4,0 kW
- 946265
- 3,0 kW
- 945900
- 3,0 kW
- 945904
- 6,0 kW
- 946256
- 2,0 kW
- 945899
- 2,0 kW
- 945903
- 4,0 kW
- 946259
- 3,0 kW
- 949595
- 3,0 kW
- 949596
- 6,0 kW
- 949602
- 2,0 kW
- 949593
- 2,0 kW
- 949594
- 4,0 kW
- 949599
- 3,0 kW
- 949404
- 3,0 kW
- 949405
- 6,0 kW
- 949415
- 2,0 kW
- 949402
- 2,0 kW
- 949403
- 4,0 kW
- 949412
