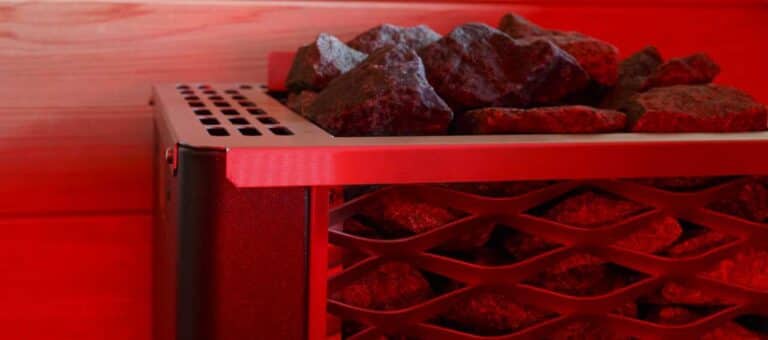

EOS FinnRock 12.0 kW
Точные сроки и условия подтвердит менеджер перед оплатой.
Отправить конфигурацию товара менеджеру и обсудить детали
Описание товара
Electronics and Power
Electrical connection voltage 400 V 3N at a frequency of 50/60 Hz. The fuse protection is limited to 10.5 and 12.0 kW. Requires 3×16 A available fuses.
pozn
Protective Devices
Fuse protection is not provided by default. For 10.5 and 12.0 kW loads, 3×16 A fuses are provided. The PEB device is unavailable.
Equipment Dimensions
Overall dimensions: height 76 cm, width 41.3 cm, depth 38.5 cm. Compatible with cabinets of various volumes and capacities (7.5/9.0/12.0 kW).
Minimum airflow opening size: 35×5 cm (7.5 kW), 35×6 cm (9.0 kW), 35×7 cm (12.0 kW).
Capacity and Weight
Cabin volumes range from 8 m³ (7.5 kW) to 18 m³ (12.0 kW). The empty device weight: 27 kg (7.5 kW), 28 kg (9.0 and 12.0 kW). Additional load of stones: 40 kg.
Additional Features
The device does not require expansion of the standard system. Features, LLC and packaging are omitted from weight data.
Характеристики
- Мощность
- 12,0 kW
- Electrical connection
- 400 V 3N ~ 50/60 Hz
- Fuse
- 3 x 16 A
- Fuse protection (PEB)
- no / 3 x 16 A (only 10,5 and 12,0 kW)
- Dimensions H/W/D, in cm
- 76 / 41,3 / 38,5
- For cabin size (7,5 / 9,0 / 12,0 kW)
- 8 - 12 m³ / 10 - 14 m³ / 14 - 18 m³
- Min. size of air inlet and outlet (7,5 / 9,0 / 12,0 kW)
- 35 x 5 cm / 35 x 6 cm / 35 x 7 cm
- Weight without stones and package (7,5 / 9,0 / 12,0 kW)
- 27 kg / 28 kg / 28 kg
- Stone filling
- 40 kg
- Power extension required
- no / PEB 10 (only 12,0 kW)
- Power
- Item no.
- 7,5 kW
- 945663
- 9,0 kW
- 945664
- 12,0 kW
- 945719
- 7,5 kW
- 947861
- 9,0 kW
- 947862
- 12,0 kW
- 947863
